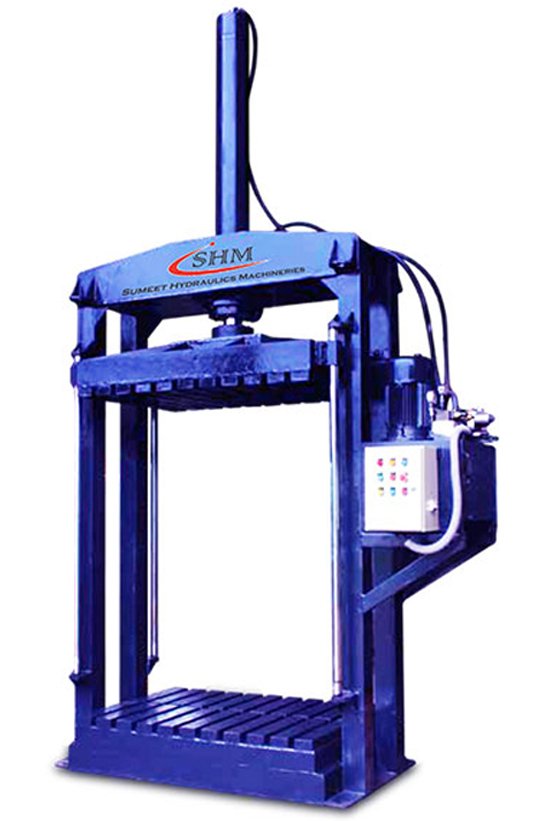

Wovansack Baling Press
Wovansack Baling Press
These presses are most suitable for very compact baling of HDPE, PPWoven Sack Bags , Fabrics & Corrugated box. Compact bales made to facilitate save transportation cost, time & storage space.
Salient Features
- FOUR open guide pillars + Four guides rode for support of moving platen resulting in perfect alignment and safety of the hydraulic seals.
- Hydraulic Double acting cylinder.
- Slits on both axes provided for the perfect bale strapping.
- The moving platen can be stopped by means of height adjustable limit switch and Pressure switch.
- Available in a wide range of platform sizes, height & tonnage.
- Warranty against proper usage on all machine parts for 1 year from date of delivery.
Technical Specification
- Electric motor ABB, Siemens, CGL, Bharat bijali , NEPTUNE.
- Pressure relief valve “POLYHYDRON” make.
- Pressure gauge 0-250 bar/0-400 bar WIKA / Micro makes.
- Solenoid operated directional control valve “UKEN”/”REXROTH” MAKE.
- Hydraulic geared pump “DOWTY”(Low pressure)/ “POLYHYDRON” (high pressure).
Technical Details
| Capacity (Tons) | 15 | 20 | 40 | 60 | 80 |
| Platen Size in mm | 1200 x 800 | 1500 x 1000 | 1500 x 1000 | 1500 x 1000 | 1500 x 1000 |
| Pressure (Kg/cm²) | 110 | 150 | 150 | 185 | 200 |
| Mini. Bale Height (mm) | 200 | 200 | 200 | 300 | 300 |
| Electric Motor (HP) | 3 | 5 | 7.5 | 10 | 12.5 |
| Day light gap (mm) | 1200 | 1200 | 1200 | 1500 | 1500 |
| Oil Required min. (Liter) | 60 | 60 | 150 | 200 | 200 |
| Cylinder & Rod (mm) | 100 x 70 | 140 x 70 | 160 x 100 | 200 x 110 | 220 x 125 |
| Hydraulic System | Gear pump | Gear pump | Double pump Tendom type | Double pump or Van Pump | Double pump or Van pump |
| Pump (LPM) | 12 | 12 | 27 + 12 | 60 + 18 | 90 + 27 |
| Operation | Hand Lever or Push Button | ||||
| Safety | Over Load protection , Auto Pressure cut-off , limit Switch Pusher Inter locking system. | ||||
