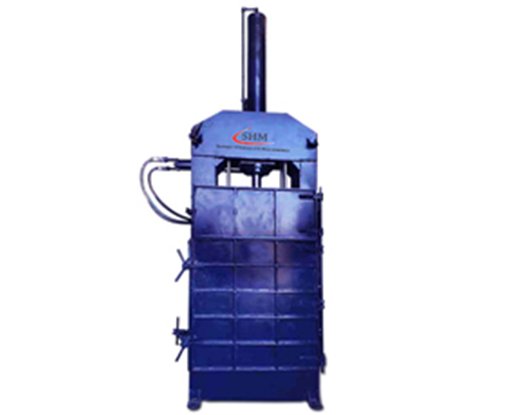

Coconut Coir Fiber Balers

Coconut Coir Fiber Balers

This coir fiber baler is designed for long stroke pressing. This type of balers are used for making compact bales for easy handling, storage, and transportation.

Applications:

  • COIR FIBER
  • SISAL FIBER
  • BANANA FIBER
  • ALL TYPE OF FIBERS
Coconut-Coir-Fiber-Balers

Technical Details

60 to 80 MT CAPACITY
Capacity in MT Ton 40 60 80
FEED OPENING 21” (l) * 36”(b)
All dimensions are In inch
21” (l) * 36”(b)
All dimensions are In inch
21” (l) * 36”(b)
All dimensions are In inch
COMPRESSING CHAMBER SIZE 21”(l) X 36”(b) X 60”
All dimension are in inch
21”(l) X 36”(b) X 72”
All dimension are in inch
21”(l) X 36”(b) X 72”
All dimension are in inch
Bale SIZE (mm) * Height very as Per Weight 1550 (l) * 760 (b) * T 1550 (l) * 760 (b) * T 1550 (l) * 760 (b) * T
BALE WEIGHT 50 to 120 KG 50 to 120 KG 50 to 120 KG
Cylinder 1nos
( Size : 160mm bore X 110mm rod X 1200mm Stroke)
1nos
( Size: 180mm bore X 110mm rod X 1400mm Stroke)
1nos
( Size: 200mm bore X 125mm rod X 1400mm Stroke)
Oil tank capacity 200ltrs Enklo 68 200ltrs Enklo 68 200ltrs Enklo 68
Hydraulic System DOUBLE VANE Pump Systems DOUBLE VANE Pump Systems DOUBLE VANE Pump Systems
Operation Panel operated / Hand lever Operated Panel operated / Hand lever Operated Panel operated / Hand lever Operated
Electric Motor 7.5 Hp , 1440rpm 10 Hp , 1440rpm 12.5 Hp , 1440rpm
Guiding system Solid bars : 4 nos or Side Guides Solid bars : 4 nos or Side Guides Solid bars : 4 nos or Side Guides
Bale Ejection System By Chain or Wire Rope or Side Screw By Chain or Wire Rope or Side Screw By Chain or Wire Rope or Side Screw
Structure Heavy Plate and Channels Used From 12 And 35 Mm Plates Heavy Plate and Channels Used From 12 And 35 Mm Plates Heavy Plate and Channels Used From 12 And 40 Mm Plates
