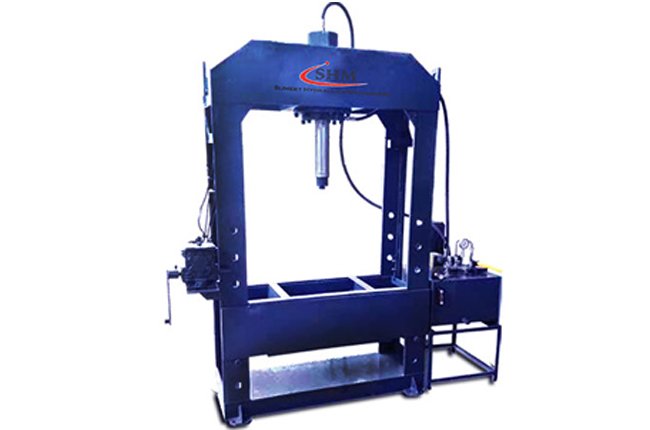

H-Frame Hydraulic Straighning Press
H-Frame Hydraulic Straighning Press
We manufacture a wide range of H Frame Hydraulic Press as per Customer's specification & requirements. We have continued to grow from the day our Company was founded. This Success is based on our customer's satisfaction.
It is our constant endeavor to confirm & extend this Confidence is us. Major Components of a 'H' type Press Consist of the bed, side Housings (uprights), crown & slide. The bed often has a removable bolster & sometimes contains one or more die cushions for deep-drawing operation.
Side Housing is either solid welded members or fabricated steel uprights; or the whole structure is joined together with steel tie rods.
Technical Details
Models Available from 80 MT to 200 MT
| Capacity (Tons) | 20 |
| Working Space | Length 4 Feet x 1.5 Feet Width x 5 feet Height |
| Stroke | 300 mm |
| Day light gap | 5 Feet |
| Cylinder | 1 No. (Size: 160 mm Bore X 90 mm Rod X 300 mm stroke) |
| Oil Tank Capacity | 30 Ltrs Enklo 68 |
| Operation | Hand Over |
| Electric Motor (HP) | 3 Hp, 1440rpm |
| Guiding system | None |
| Bale Ejection System | None |
| Safety | None |
