Double Cylinder Argo Nette Baling Press

Double Cylinder Argo Nette Baling Press

Double cylinder hydraulic baling machine are one of the aim industries most popular down stroke balers, double cylinder hydraulic baling machine which are put to great use in the compact baling of agriculture nette , mosquito nette , Leno bags , shed nette , fabrics , wovensack small bags, this type of mchines are used in wovensack bags printing Units , nette manifacturing units, finishing units. Double cylinder hydraulic baling machine will reduced storage area and savings on transportation and labor costs.

Applications:

  • SHED NETTE
  • AGRO NETTE
  • MOSQUITO NETTE
  • LENO BAGS
  • ALL TYPE OF NETTE MATERIAL
  • WOVENSACK BAGS
  • TARPULIN

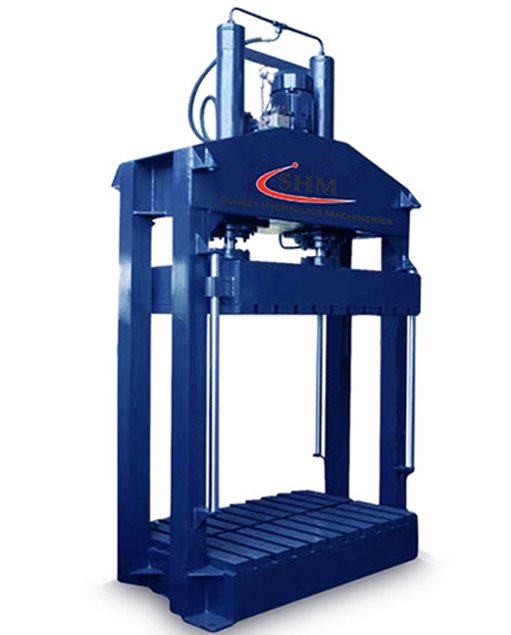

double-cylinder-argo

Technical Details

Capacity (Tons) 25 40 60
Platen Size in mm L-1500 X B-1000
All dimensions are in mm
L-1500 X B-1000
All dimensions are in mm
L-1500 X B-1000
All dimensions are in mm
Working Space L-1500 X B-1000 X H-1200
All dimensions are in mm
L-1500 X B-1000 X H-1200
All dimensions are in mm
L-1500 X B-1000 X H-1500
All dimensions are in mm
Bale Gap in (mm) 200 200 200
Day light gap (mm) 1200 1200 1200
Cylinder 2 Nos.
(Size: 100 mm Bore X 70 mm Rod X 1000 mm stroke)
2 Nos.
(Size: 140 mm Bore X 80 mm Rod X 1000 mm Stroke)
2 Nos.
(Size: 140 mm Bore X 80 mm Rod X 1000 mm Stroke)
Oil Tank Capacity 60 Ltrs Enklo 68 110 Ltrs Enklo 68 110 Ltrs Enklo 68
Hydraulic System Gear pump Gear pump Gear pump
Operation Panel Operated/ Manually Operated Panel / Mobile control Valve Operated Panel Operated / Manually Operated
Electric Motor (HP) 5 Hp, 1440rpm 7.5 Hp, 1440rpm 10 Hp, 1440rpm
Guiding system Solid Bars: 4 Nos Solid Bars: 4 Nos Solid Bars: 4 Nos
Bale Ejection System By Solid Rod By Solid Rod By Solid Rod
Safety Limit Switches, Pressure Switches, Emergency Stop, Door Interlocking.
