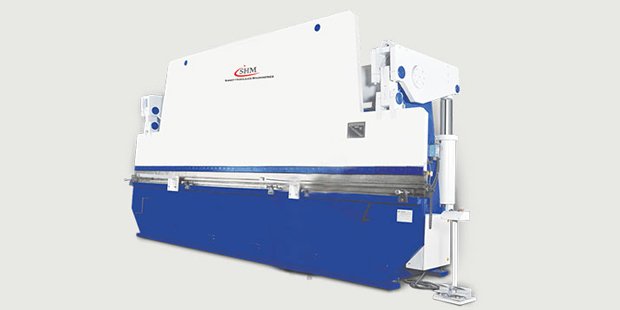

Hydraulic Press Brake

Hydraulic Press Brake

hydraulic-press-break
hydraulic-press-break-graph

Salient Features

  • Repeatability for ram position ± 0.05mm.
  • Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity.
  • The stable robust welded steel Frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards.
  • Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure. for Mild steel (HT) & Stainless steel Materials.
  • Positive synchronisation of cylinders with welded torque tube gives better bending accuracy on both ends.
  • Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button.
  • NC upgradation possible on site.
  • All electrical & hydraulic component from reputed make.
  • Hydraulic Cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals.
RANGE | 30 MT to 600 MT
LENGTh | 1250 mm to 8000 mm Salient
Model Tonnage Table Length Bending Capacity Table Width Clear Pass Ram Stroke Open Height Throat Depth Approach Pressing Return speed Power Packing Dimensions Weight
MT mm mm mm mm mm mm mm mm HP L x W x H Weight
SHM 315 30 1500 2 x 1500 3 x 1250 125 1050 100 250 200 37-5-35 3 1700 x 1150 x 1900 1500
SHM 320 30 2000 2 x 2000 3 x 1250 125 1550 100 250 200 37-5-35 3 2000 x 1150 x 1900 1750
SHM 325 30 2500 1.5 x 2500 2 x 2000 125 2050 100 250 200 37-5-35 3 2700 x 1650 x 2400 2100
SHM 415 40 1500 3 x 1500 4 x 1250 180 1050 100 250 200 55-7-53 5 1700 x 1150 x 1800 1800
SHM 420 40 2000 2.5 x 2000 3 x 1500 180 1550 100 250 200 55-7-53 5 2200 x 1150 x 1800 2100
SHM 425 40 2500 2 x 2500 3 x 1500 180 2050 100 250 200 55-7-53 5 2700 x 1150 x 1900 2500
SHM 430 40 3000 1.6 x 3000 2 x 2500 180 2550 100 250 200 55-7-53 5 3200 x 1150 x 2000 3000
SHM 515 50 1500 4 x 1500 5 x 1250 180 1050 100 250 200 55-7-53 5 1700 x 1150 x 1900 2250
SHM 520 50 2000 3 x 2000 4 x 1500 180 1550 100 250 200 55-7-53 5 2200 x 1150 x 1900 2600
SHM 525 50 2500 2.5 x 2500 3 x 2000 180 2050 100 250 200 55-7-53 5 2700 x 1150 x 1900 3000
SHM 530 50 3000 2 x 3000 2.5 x 2500 180 2550 100 250 200 55-7-53 5 3200 x 1150 x 2000 3500
SHM 620 65 2000 4 x 2000 5 x 1500 180 1550 150 330 200 49-5-33 5 2200 x 1200 x 2000 2750
SHM 625 65 2500 3 x 2500 3 x 2500 180 2050 150 330 200 49-5-33 5 2700 x 1200 x 2000 3250
SHM 630 65 3000 2.5 x 2500 3 x 2500 180 2550 150 330 200 49-5-33 5 3200 x 1200 x 2000 3750
SHM 640 65 4000 2 x 4000 2.5 x 3000 180 3100 150 330 200 49-5-33 5 4200 x 1250 x 2400 4400
SHM 820 80 2000 5 x 2000 6 x 1500 180 1550 150 330 200 31-5-34 7.5 2200 x 1550 x 2100 3700
SHM 825 80 2500 4 x 2500 5 x 2000 180 2050 150 330 200 31-5-34 7.5 2750 x 1550 x 2300 4250
SHM 830 80 3000 3 x 3000 4 x 2500 180 2550 150 330 200 31-5-34 7.5 3250 x 1550 x 2300 4800
SHM 840 80 4000 2.5 x 4000 3 x 3000 180 3100 150 330 200 31-5-34 7.5 4250 x 1650 x 2500 6000
SHM 850 80 5000 2 x 5000 2.5 x 4000 180 4100 150 330 200 31-5-34 7.5 5300 x 1650 x 2500 8000
SHM 1025 100 2500 5 x 2500 6 x 2000 180 2050 150 330 200 29-04-31 10 2700 x 1550 x 2300 4850
SHM 1030 100 3000 4 x 3000 5 x 2500 180 2550 150 330 200 29-04-31 10 3250 x 1550 x 2300 5500
SHM 1040 100 4000 3 x 4000 4 x 3000 180 3100 150 330 200 29-04-31 10 4250 x 1650 x 2500 7000
SHM 1050 100 5000 2.5 x 5000 3 x 4000 180 4100 150 330 200 29-04-31 10 5300 x 1700 x 2800 9000
SHM 1060 100 6000 2 x 6000 2.5 x 5000 180 5100 150 330 200 29-04-31 10 6300 x 1750 x 2900 12000
SHM 1225 125 2500 6 x 2500 8 x 2000 230 2050 150 350 300 20-04-41 15 2750 x 1650 x 2700 5750
SHM 1230 125 3000 5 x 3000 6 x 2500 230 2550 150 350 300 20-04-41 15 3250 x 1650 x 2500 6500
SHM 1240 125 4000 4 x 4000 5 x 3000 230 3100 150 350 300 20-04-41 15 4250 x 1650 x 2600 8000
SHM 1250 125 5000 3 x 5000 4 x 4000 230 4100 150 350 300 20-04-41 15 5300 x 1750 x 2900 11500
SHM 1260 125 6000 2.5 x 6000 3 x 5000 230 5100 150 350 300 20-04-41 15 6300 x 1800 x 3000 14500
SHM 1625 160 2500 8 x 2500 10 x 2000 230 2050 150 350 300 25-06-42 15 2750 x 1800 x 2500 6500
SHM 1630 160 3000 6 x 3000 8 x 2500 230 2550 150 350 300 25-06-42 15 3250 x 1800 x 2600 7500
SHM 1640 160 4000 5 x 4000 6 x 3000 230 3100 150 350 300 25-06-42 15 4300 x 1800 x 2700 10500
SHM 1650 160 5000 4 x 5000 5 x 4000 230 4100 150 350 300 25-06-42 15 5300 x 1850 x 3000 14000
SHM 1660 160 6000 3 x 6000 4 x 5000 230 5100 150 350 300 25-06-42 15 6300 x 1900 x 3200 17500
SHM 2025 200 2500 10 x 2500 12 x 2000 300 2050 200 400 300 22-04-58 20 2850 x 1900 x 2600 10000
SHM 2030 200 3000 8 x 3000 10 x 2500 300 2550 200 400 300 22-04-58 20 3350 x 2050 x 2750 11000
SHM 2040 200 4000 6 x 4000 8 x 3000 300 3100 200 400 300 22-04-58 20 4350 x 2050 x 2800 12500
SHM 2050 200 5000 5 x 5000 6 x 4000 300 4100 200 400 300 22-04-58 20 5350 x 2100 x 3100 15500
SHM 2060 200 6000 4 x 6000 5 x 5000 300 5100 200 400 300 22-04-58 20 6350 x 2200 x 3500 19500
SHM 2530 250 3000 10 x 3000 12 x 2500 300 2550 200 400 300 22-04-58 20 3350 x 2100 x 2800 11500
SHM 2540 250 4000 8 x 4000 10 x 3000 300 3100 200 400 300 22-04-58 20 4350 x 2000 x 2900 20500
SHM 2550 250 5000 6 x 5000 5 x 4000 300 4100 200 400 300 22-04-58 20 5350 x 2150 x 3200 16250
SHM 2560 250 6000 5 x 6000 6 x 5000 300 5100 200 400 300 22-04-58 20 6350 x 2250 x 3600 20500
SHM 3030 300 3000 12 x 3000 14 x 2500 300 2550 200 400 300 22-04-58 25 3350 x 2150 x 2900 12500
SHM 3040 300 4000 10 x 3500 12 x 3000 300 3100 200 400 300 30-06-40 25 4350 x 2150 x 2900 14000
SHM 3050 300 5000 8 x 5000 10 x 4000 300 4100 200 400 300 30-06-40 25 5350 x 2200 x 3400 19250
SHM 3060 300 6000 6 x 6000 8 x 4500 300 5100 200 400 300 30-06-40 25 6350 x 2300 x 3800 22000
SHM 4030 400 3000 16 x 3000 20 x 2500 300 2550 250 500 350 25-05-40 30 3350 x 2200 x 3000 16000
SHM 4040 400 4000 12 x 4000 16 x 3000 300 3100 250 500 350 25-05-40 30 4350 x 2200 x 3000 20500
SHM 4050 400 5000 10 x 5000 12 x 4000 300 4100 250 500 350 25-05-40 30 5350 x 2250 x 3600 24500
SHM 4060 400 6000 8 x 6000 10 x 5000 300 5100 250 500 350 25-05-40 30 6350 x 2350 x 4000 29500
SHM 5030 500 3000 20 x 3000 25 x 2500 300 2550 250 500 350 25-05-40 40 3350 x 2200 x 3200 19500
SHM 5040 500 4000 16 x 4000 20 x 3000 300 3100 250 500 350 25-05-40 40 4500 x 2200 x 3300 23500
SHM 5050 500 5000 14 x 5000 14 x 5000 300 4100 250 500 350 25-05-40 40 5350 x 2400 x 3900 29500
SHM 5060 500 6000 10 x 6000 14 x 5000 300 5100 250 500 350 25-05-40 40 6350 x 2500 x 4250 34000
SHM 6030 600 3000 25 x 3000 30 x 2500 300 2550 250 500 350 25-05-40 50 3350 x 2200 x 3300 24000
SHM 6040 600 4000 18 x 4000 25 x 3000 300 3100 250 500 350 25-05-40 50 4500 x 2200 x 3500 29000
SHM 6050 600 5000 14 x 5000 18 x 4000 300 4100 250 500 350 25-05-40 50 5350 x 2300 x 3700 34500
SHM 6060 600 6000 12 x 6000 14 x 5000 300 5100 250 500 350 25-05-40 50 6350 x 2600 4350 41000
