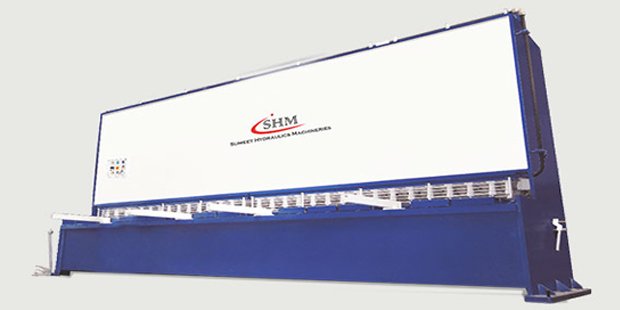

Hydraulic Shering Machine

Hydraulic Shering Machine

service-and-support
service-and-support

Salient Features

  • Proven & Reliable Variable Rake Angle Type Guillotine Shearing Machine.
  • Robust & Ergonomic Structure Design to withstand heavy shearing loads.
  • The cutter beam is guided on six point Hardened & Grounded rollers providing a maintenance free machine even after long and extensive use.
  • Suitable for Thin & Thick sheets due to Variable Rack angle.
  • Automatic Rake angle adjustment through selector switch.
  • Cutting job accuracy as per DIN standard.
  • Quick & Easy Rake angle selection chart.
  • Accurate & Rapid manual Pre-Calibrated Blade clearance through Lever.
  • Smooth and Sturdy Manually operated back gauge assembly equipped with hardened ball screw & Hardened Guide Bars.
  • Four Edge Interchangeable Top & Bottom Hardened & Grounded HCHCr Shearing Blades suitable for Mild steel (HT) & Stainless steel Materials.
RANGE | 2mm to 32 mm
LENGTh | 1250mm to 800mm

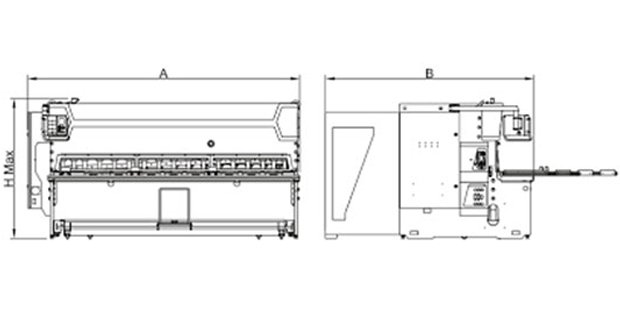

Model Cutting Length Shearing capacity Thickness(mm) Nominal Rake Angle Rake Angle Range Strokes Per Minute No. Of Hold Downs Holding Force Power Packing Dimension Weight
M.S. S.S.
mm Nominal Rake Angle Max. Rake Angle Nominal Rake Angle Max. Rake Angle Degree Degree At Min. Rake Angle At Max. Rake Angle Kg. HP (L x W x H) mm Kg.
SHM 215 1500 2 2 1.25 1.25 1”12’ 1”12’ 16 16 - - 3 2000 x 1000 x 1250 1300
SHM 220 2000 2 2 1.25 1.25 1”12’ 1”12’ 12 12 - - 3 2500 x 1250 x 1500 1700
SHM 225 2500 2 2 1.25 1.25 1”12’ 1”12’ 10 10 - - 3 3000 x 1250 x 1850 2500
SHM 312 1250 3.15 4 2 3.15 1”30’ 0.5-2” 16 11 8 1200 3 1700 x 1250 x1950 2000
SHM 315 1500 3.15 4 2 3.15 1”30’ 0.5-2” 15 10 9 1500 3 2200 x 1250 x 1950 2500
SHM 320 2000 3.15 4 2 3.15 1”30’ 0.5-2” 14 8 11 2000 3 2700 x 1250 x 1950 3000
SHM 325 2500 3.15 4 2 3.15 1”30’ 0.5-2” 19 11 13 2300 5 3200 x 1250 x 2000 3700
SHM 330 3000 3.15 4 2 3.15 1”30’ 0.5-2” 18 9 16 2600 5 3700 x 1400 x 2100 4250
SHM 340 4000 3.15 4 2 3.15 1”30’ 0.5-2” 15 8 20 3200 7.5 4700 x 1500 x 2250 6000
SHM 415 1500 4 6 3 4 1”37’ 0.5-3” 23 13 9 4500 7.5 2250 x 1250 x 2050 3200
SHM 420 2000 4 6 3 4 1”37’ 0.5-3” 23 11 11 6200 7.5 2750 x 1250 x 2100 3700
SHM 425 2500 4 6 3 4 1”37’ 0.5-3” 21 9 13 8000 7.5 3300 x 1400 x 2250 4200
SHM 430 3000 4 6 3 4 1”37’ 0.5-3” 23 10 16 10000 7.5 3700 x 1500 x 2400 5250
SHM 440 4000 4 6 3 4 1”37’ 0.5-3” 22 8 20 12000 10 4700 x 1650 x 2600 7200
SHM 615 1500 6 8 4 6 1”45’ 0.5-3” 23 10 9 6500 10 2250 x 1300 x 2100 3250
SHM 620 2000 6 8 4 6 1”45’ 0.5-3” 22 10 11 6500 10 2750 x 1350 x 2150 4250
SHM 625 2500 6 8 4 6 1”45’ 0.5-3” 21 9 13 8500 15 3300 x 1500 x 2300 5250
SHM 630 3000 6 8 4 6 1”45’ 0.5-3” 20 8 16 10800 15 3800 x 1650 x 2500 5750
SHM 640 4000 6 8 4 6 1”45’ 0.5-3” 22 9 20 13600 20 4800 x 1700 x 2750 8250
SHM 650 5000 6 8 4 6 1”45’ 0.5-3” 21 7 24 16500 20 5700 x 1800 x 2850 11500
SHM 660 6300 6 8 4 6 1”45’ 0.5-3” 18 6 28 19500 20 6700 x 1900 x 2950 14500
SHM 815 1500 8 10 6 8 2” 0.5-3” 15 8 9 10500 10 2250 x 1350 x 2100 4750
SHM 820 2000 8 10 6 8 2” 0.5-3” 15 6 11 12000 15 2750 x 1450 x 2250 5700
SHM 825 2500 8 10 6 8 2” 0.5-3” 18 8 13 16500 20 3300 x 1650 x 2450 6500
SHM 830 3000 8 10 6 8 2” 0.5-3” 17 6 16 18500 20 3800 x 1800 x 2600 7000
SHM 840 4000 8 10 6 8 2” 0.5-3” 15 5 20 23000 20 4800 x 1850 x 2800 9500
SHM 850 5000 8 10 6 8 2” 0.5-3” 18 6 24 27000 25 5750 x 1950 x 2900 12250
SHM 860 6300 8 10 6 8 2” 0.5-3” 15 5 30 31000 25 6750 x 2100 x 3100 17000
SHM 1015 1500 10 12 8 10 2” 0.5-3” 12 6 8 10500 10 2250 x 1350 x 2200 5000
SHM 1020 2000 10 12 8 10 2” 0.5-3” 13 5 11 13000 15 2750 x 1500 x 2300 6000
SHM 1025 2500 10 12 8 10 2” 0.5-3” 13 5 13 17500 20 3300 x 1650 x 2500 6750
SHM 1030 3000 10 12 8 10 2” 0.5-3” 12 4 16 20000 20 3800 x 1850 x 2750 9000
SHM 1040 4000 10 12 8 10 2” 0.5-3” 18 6 20 25000 25 4800 x 1950 x 2850 12000
SHM 1050 5000 10 12 8 10 2” 0.5-3” 14 5 24 30000 30 5750 x 2050 x 3000 15000
SHM 1060 6300 10 12 8 10 2” 0.5-3” 13 4 28 35000 30 6750 x 2200 x 3300 22000
SHM 1320 2000 13 16 10 13 2” 1-3” 13 6 11 16000 25 2850 x 1800 x 2600 9000
SHM 1325 2500 13 16 10 13 2” 1-3” 9 5 13 20000 25 3350 x 1900 x 2750 10000
SHM 1330 13 16 10 13 3000 2” 1-3” 8 4 16 25000 25 3800 x 1950 x 2850 11500
SHM 1340 4000 13 16 10 13 2” 1-3” 7 3 20 30000 30 4800 x 2000 x 2950 16000
SHM 1350 5000 13 16 10 13 2” 1-3” 9 4 24 35000 40 5750 x 2150 x 3150 21000
SHM 1360 6300 13 16 10 13 2” 1-3” 8 4 28 40000 40 6750 x 2300 x 3500 28000
SHM 1620 2000 16 20 13 16 2” 1-3” 9 5 11 20000 30 3000 x 1900 x 2800 10500
SHM 1625 2500 16 20 13 16 2” 1-3” 9 4 13 25000 30 3500 x 2000 x 2900 12250
SHM 1630 3000 16 20 13 16 2” 1-3” 8 4 16 28000 30 4000 x 2000 x 3000 14500
SHM 1640 4000 16 20 13 16 2” 1-3” 6 3 20 33000 30 4800 x 2050 x 3100 19000
SHM 1650 5000 16 20 13 16 2” 1-3” 7 3 24 38000 40 5750 x 2250 x 3300 26000
SHM 1660 6300 16 20 13 16 2” 1-3” 6 3 28 43000 40 6750 x 2350 x 3700 31500
SHM 2025 2500 20 25 16 20 2” 1-3” 6 3 13 28000 40 3500 x 2000 x 3000 16000
SHM 2030 3000 20 25 16 20 2” 1-3” 6 2 16 35000 40 4000 x 2100 x 3200 19500
SHM 2040 4000 20 25 16 20 2” 1-3” 5 2 20 40000 50 4800 x 2200 x 3300 23500
SHM 2050 5000 20 25 16 20 2”2” 1-3” 6 3 24 45000 60 5800x 2350 x 3500 30000
SHM 2060 6300 20 25 16 20 2” 1-3” 5 2 28 50000 60 3800 x 2450 x 4100 36000
SHM 2525 2500 25 30 20 25 2” 1-3” 5 3 13 36000 60 3400 x 2250 x 3300 22000
SHM 2530 3000 25 30 20 25 2” 1-3” 4 2 16 45000 60 4000 x 2300 x 3300 25500
SHM 2540 4000 25 30 20 25 2” 1-3” 5 2 20 50000 75 5000 x 2300 x 3500 31000
SHM 2550 5000 25 30 20 25 2” 1-3” 4 2 24 55000 75 6000 x 2450 x 3700 36000
SHM 2560 6300 25 30 20 25 2” 1-3” 3 1 28 60000 75 7000 x 2600 x 4300 42000
