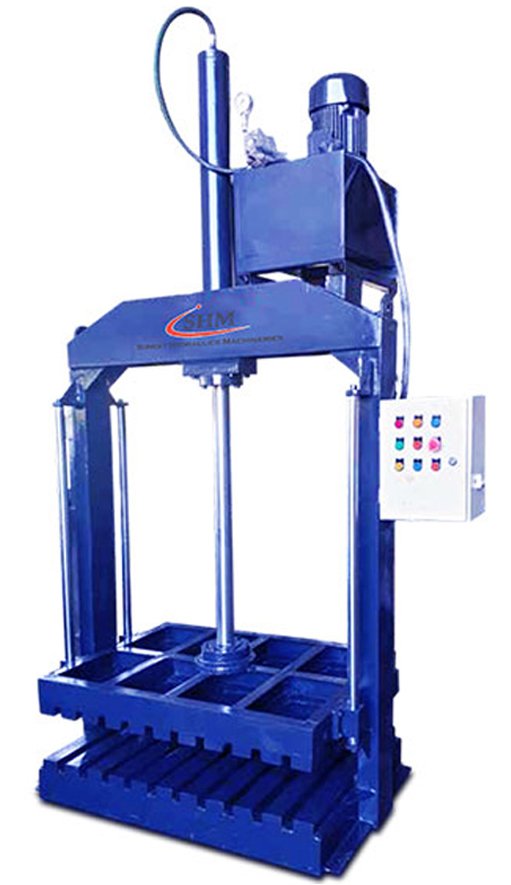

Tarpulin Baling Machine
Tarpulin Baling Machine
These presses are most suitable for very compact baling of TARPULIN. Compact bales made to facilitate save transportation cost, time & storage space.
Salient Features
- FOUR open guide pillars + Four guides rode for support of moving platen resulting in perfect alignment and safety of the hydraulic seals.
- Hydraulic Double acting cylinder.
- Slits on both axes provided for the perfect bale strapping.
- The moving platen can be stopped by means of height adjustable limit switch and Pressure switch.
- Available in a wide range of platform sizes, height & tonnage.
- Warranty against proper usage on all machine parts for 1 year from date of delivery.
Technical Specification
- Electric motor ABB, Siemens, CGL, Bharat bijali , NEPTUNE.
- Pressure relief valve “POLYHYDRON” make.
- Pressure gauge 0-250 bar/0-400 bar WIKA / Micro makes.
- Solenoid operated directional control valve “UKEN”/”REXROTH” MAKE.
- Solenoid operated directional control valve “UKEN”/”REXROTH/SPICA/ATOS” MAKE.
- Hydraulic geared pump “DOWTY”(Low pressure)/ “POLYHYPOLYHYDRON” (high pressure)/”OIL POWER”.
Technical Details
10 / 20 MT Capacity
| Capacity (Tons) | 10 | 20 | |||
| Platen Size in mm | 1000 x 900 | 1000 x 900 | |||
| Working Space (mm) | 1000 (l) x 900 (b) x 1000(h) | 100 (l) x 900 (b) x 1200 (h) | |||
| Bale Gap. (mm) | 200 | 200 | |||
| Day light gap (mm) | 1000 | 1000 | |||
| Cylinder | 1 No. ( Size : 100mm bore x 70 mm rod x 800 mm stroke) | 1 No. (Size : 140mm bore x 70 mm rod x 1000 mm stroke) | |||
| Oil Tank Capacity (Liter) | 50 Ltrs ENKLO 68 | 60 Ltrs. ENKLO 68 | |||
| Hydraulic System | Gear Pump System | Gear Pump System | |||
| Operation System | Hand Level Operated / Panel Operated | Hand Level Operated / Panel Operated | |||
| Electric Motor (HP) | 3HP, 1440 rmp | 5HP, 1440 rpm | |||
| Bale Ejection System | By Solid Rod | By Solid Rod | |||
| Safety | Limit Switches, Pressure Switches, Emergency Top, Door Interlocking. | ||||
