Vertical Scrap Balers
Vertical Scrap Balers

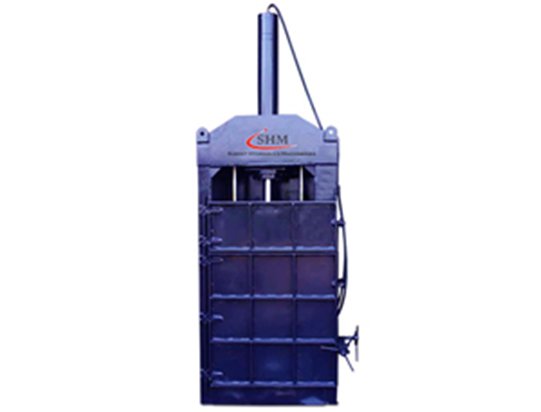

VERTICAL SCRAP BALERS are one of the most popular down stroke balers, are standalone vertical baling machines which are put to great use in the disposal of cardboard/carton, ideal for waste recycling facilities, cardboard/paper manufacturing units, supermarkets, department.
stores, grocery stores, drug stores, printing facilities, and others that generate massive WASTe cardboard, PAPER AND PLASTIC FILMS. They can strap hundreds of card boards into a bale up to 600kg with largest bale size of 1520*760*1220mm. The volume reduction is approximately 12:1 when pressing plastic film or cardboard waste. For recycling centers, this will mean reduced waste storage area, streamline overall waste processing operations and savings on transportation and labor costs.
Applications:
- Cartons
- POLY Film
- Used / old corrugated cardboard (occ)
- Old newspaper (ONP)
- Old magazines (OMG)
- Office wastes and other packaging materials.
- This multi-purpose baler is also useful in compacting other waste materials, which are produced on a day to day basis such as scrap paper and polystyrene packaging for easy storage until disposal
Technical Details
Models Available from 80 MT to 200 MT
| Capacity in MT Ton | 8 | 15 | 20 | 30 | 40 | 60 | 80 |
| FEED OPENING | 500 X 300 | 860 X 600 | 860 X 600 | 860 X 600 | 860 X 600 | 860 X 600 | 860 X 600 |
| COMPRESSING CHAMBER SIZE | 500 X 300 X 700 | 860 X 600 X 1000 | 860 X 600 X 1000 | 860 X 600 X 1200 | 860 X 600 X 1500 | 860 X 600 X 1500 | 860 X 600 X 1800 |
| Bale SIZE | 500 x 300 x 250 | 860 X 600 X T | 860 X 600 X T | 860 X 600 X T | 860 X 600 X T | 860 X 600 X T | 860 X 600 X T |
| BALE WEIGHT | 20 to 30 KG | 50 to 60 KG | 50 to 60 KG | 80 to 100 KG | 100 to 120 Kg | 120 to 150 Kg | 150 to 200 Kg |
| Cylinder | BORE: 80 ROD: 50 STROKE: 500 |
BORE: 100 ROD: 70 STROKE: 800 |
BORE: 125 ROD: 70 STROKE: 800 |
BORE: 140 ROD: 80 STROKE: 1000 |
BORE: 160 ROD: 90 STROKE: 1200 |
BORE: 180 ROD: 100 STROKE: 1200 |
BORE: 200 ROD: 120 STROKE: 1500 |
| Oil tank capacity | 40ltrs Enklo 68 | 60ltrs Enklo 68 | 60ltrs Enklo 68 | 90ltrs Enklo 68 | 110ltrs Enklo 68 | 150ltrs Enklo 68 | 200ltrs Enklo 68 |
| Operation | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated | Hand lever Operated / Push button Operated |
| Electric Motor | 2 HP , 1440rpm | 3 HP , 1440rpm | 5 HP , 1440rpm | 7.5 HP , 1440rpm | 7.5 HP, 1440 rpm | 10 HP, 1440 rpm | 12.5 HP, 1440 rpm |
| Guiding system | Solid bars : 2 nos | Solid bars : 2 nos | Solid bars : 2 nos | Solid bars : 2 nos | Solid bars : 2 nos | Solid bars : 2 nos | Solid bars : 2 nos |
| Bale Ejection System | Taper Design | Taper Design | Taper Design | SIDE SCREW | SIDE SCREW | SIDE SCREW | SIDE SCREW |
